THE VEHICLE AT A GLANCE
Model dossier
- Production period
- 1962
- Body style
- Cabriolet
- Engine
- Flat-4 OHV
- Type
- Limited
- Production
- 878
- Displacement
- 1,500 cc
- Power
- 90 CV
- Top speed
- 170 km/h
THE PEOPLE BEHIND THE CAR
Coachbuilding, design & conversions
PRICE & SALES RECORD
Vehicle value
- Original price
- Not documented
- Latest recorded sale
- Not documented
01 / THE STORY
History & context

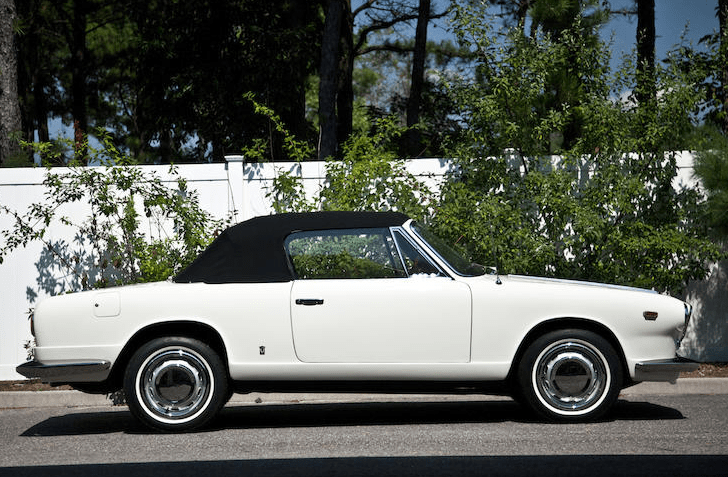

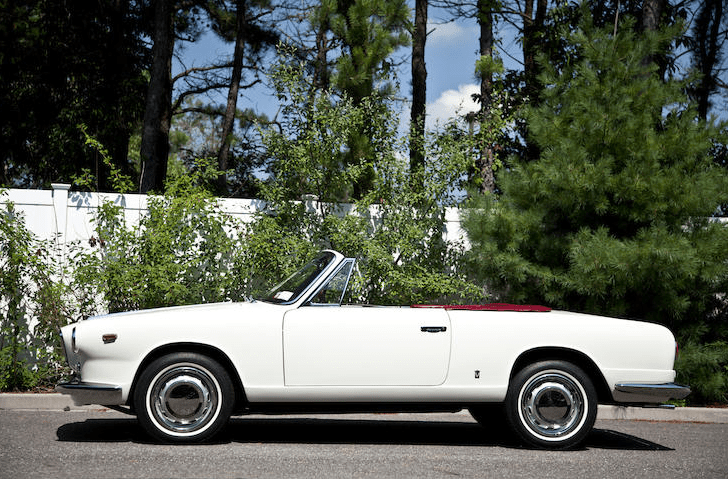

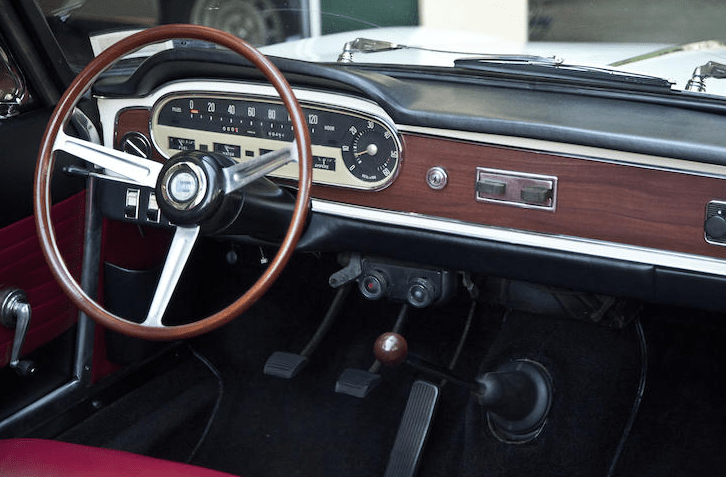

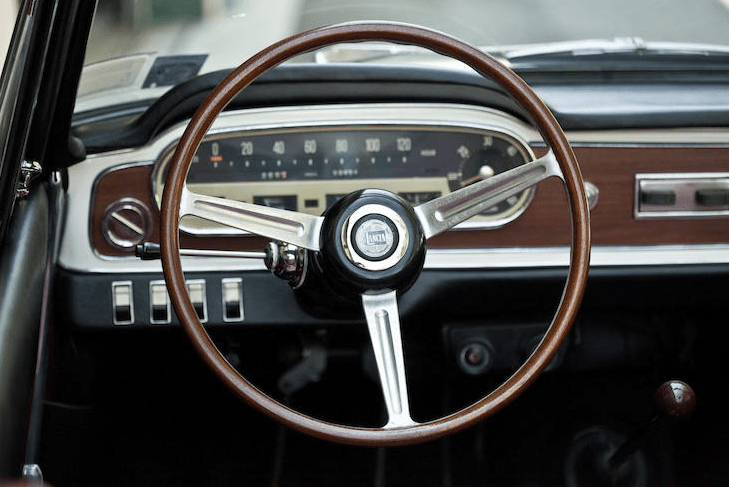

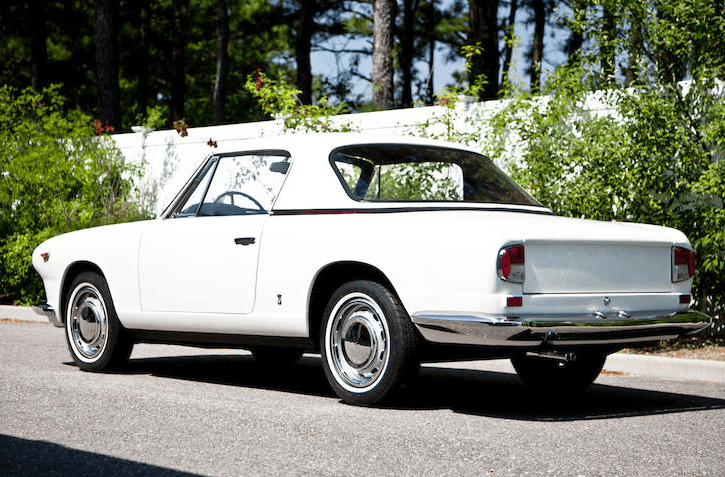

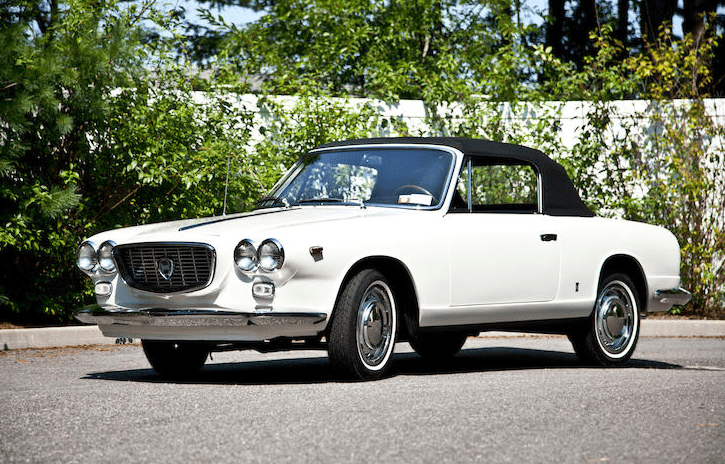

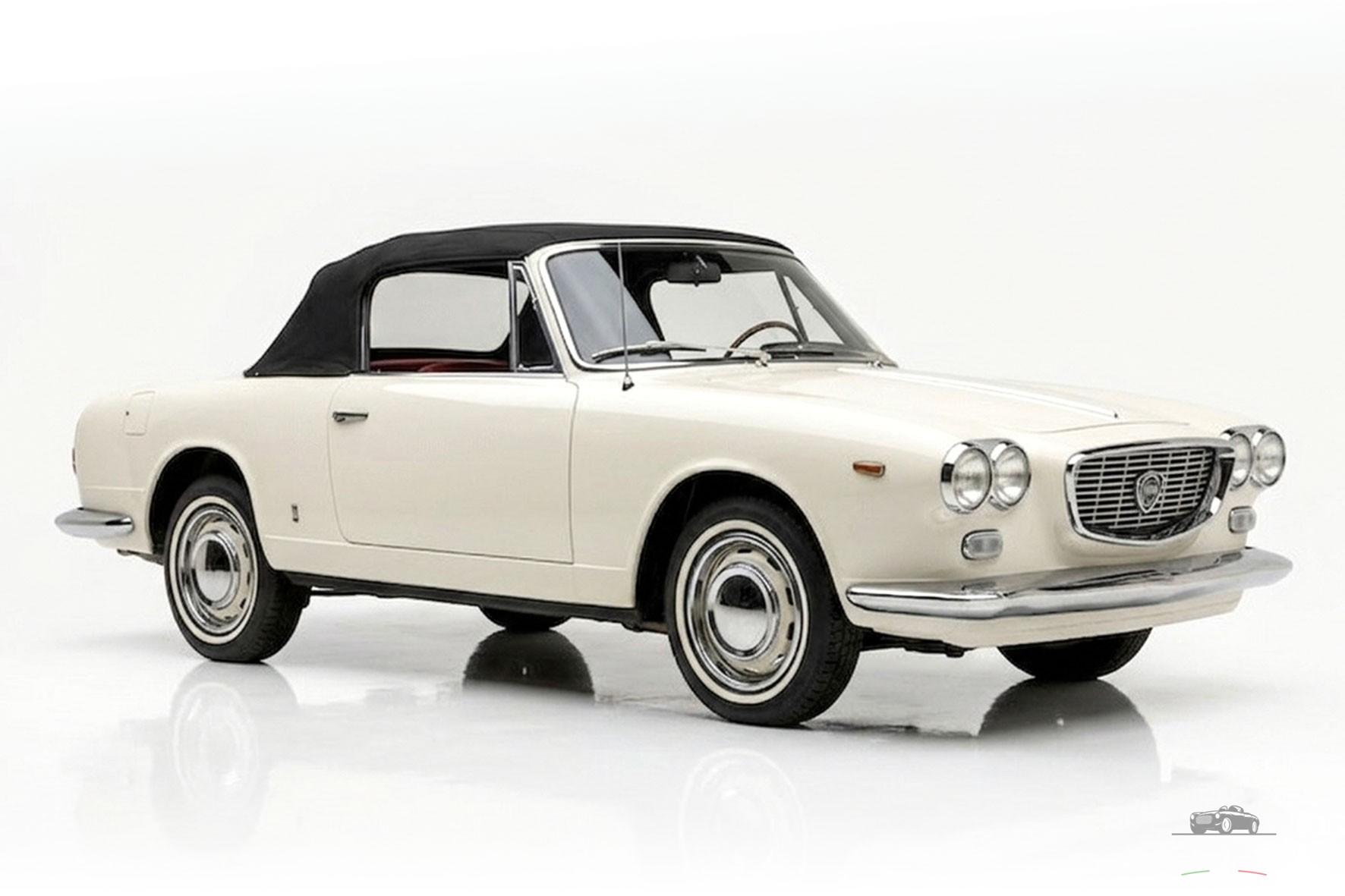

The Lancia Flavia Convertibile has its roots in the introduction of the Flavia saloon in 1961, which continued Lancia’s tradition of innovative automotive engineering. Designed by Antonio Fessia and inspired by his Cemsa prototype of 1947, the Flavia saloon was notable for being Italy’s first series-production car to feature front-wheel drive. In 1962, the Lancia Flavia Convertibile by Vignale made its debut at the Turin Motor Show alongside the Zagato-designed lightweight two-door sport version. Based on the shorter-wheelbase Pininfarina-styled Coupé, the Convertibile featured a design by Giovanni Michelotti. The interior layout offered comfortable seating for four, with reclining leather or faux leather seats at the front. The dashboard, derived from the saloon, featured a simple yet comprehensive instrument panel, with a wooden insert adding a touch of elegance. The convertible top, available in various colors, could be replaced with an optional hardtop for added versatility. Mechanically, the Flavia Convertibile shared the same boxer engine as the Pininfarina Coupé, initially equipped with the “sport” version of the 1500cc four-cylinder engine. This engine, with its pair of Solex C35PII carburetors, delivered impressive power output for its time, complemented by a potent hydraulic braking system with four disc brakes. Production of the Lancia Flavia Convertibile Vignale spanned from 1963 to 1965, with only 835 units fitted with the 1.8-liter engine produced. An additional 43 units were equipped with fuel injection until the end of 1966. Designed by Giovanni Michelotti, the Flavia Convertibile represented the culmination of the collaboration between Lancia and Vignale, leaving a lasting impression as the last model to emerge from their partnership.
02 / TECHNICAL IDENTITY
Specifications & construction
Production & construction
- Production
- 878
- Production type
- Limited
Engine & performance
- Engine configuration
- Flat-4 OHV
- Displacement
- 1,500 cc
- Power (hp)
- 89 hp
- Power (CV)
- 90 CV
- Power (kW)
- 66 kW
- Torque
- 116 Nm
- Transmission
- 4-speed manual
- Drive
- Front-wheel drive
- Top speed
- 170 km/h
- Specification notes
- 1962 launch baseline for the Michelotti/Vignale Flavia Convertibile: OHV flat-four 1500 cc, 90 PS CUNA / 66 kW, 116 Nm, 4-speed manual, FWD, wheelbase 2480 mm, length 4340 mm, width 1610 mm, curb weight 1150 kg, factory top speed 170 km/h. Height is left blank because period-derived references conflict; later 1.8/1.8-injection versions are not merged into the 1.5 launch powertrain.
Dimensions & accommodation
- Wheelbase
- 2,480 mm
- Length
- 4,340 mm
- Width
- 1,610 mm
- Weight
- 1,150 kg
Design & manufacture
- Designer · Documented
- Giovanni Michelotti
- Manufacturer · Documented
- Lancia
- Coachbuilder / Body Builder · Documented
- Vignale
06 / EVENTS & AWARDS
Events & awards
No events or documented awards are currently recorded for this vehicle.
07 / THE VEHICLE IN DETAIL
Photo gallery 10 photographs
Show 4 more photographs Show fewer photographs
08 / FROM THE ARCHIVE
Archive
References held in the vehicle dossier. Their inclusion does not establish that every historical claim has been independently verified.
| Reference | Source type |
|---|---|
| 1962 Lancia Flavia Vignale Convertible full-range specification www.automobile-catalog.com | Specialist period model reference |
| Stellantis Heritage — Lancia Flavia 1500 Convertibile www.media.stellantis.com | Manufacturer heritage |
