THE VEHICLE AT A GLANCE
Model dossier
- Production period
- 2005
- Body style
- Pickup
- Engine
- Inline-4
- Type
- Limited
- Displacement
- 1,598 cc
- Power
- 170 CV
- Top speed
- 210 km/h
THE PEOPLE BEHIND THE CAR
Coachbuilding, design & conversions
PRICE & SALES RECORD
Vehicle value
- Original price
- Not documented
- Latest recorded sale
- Not documented
01 / THE STORY
History & context

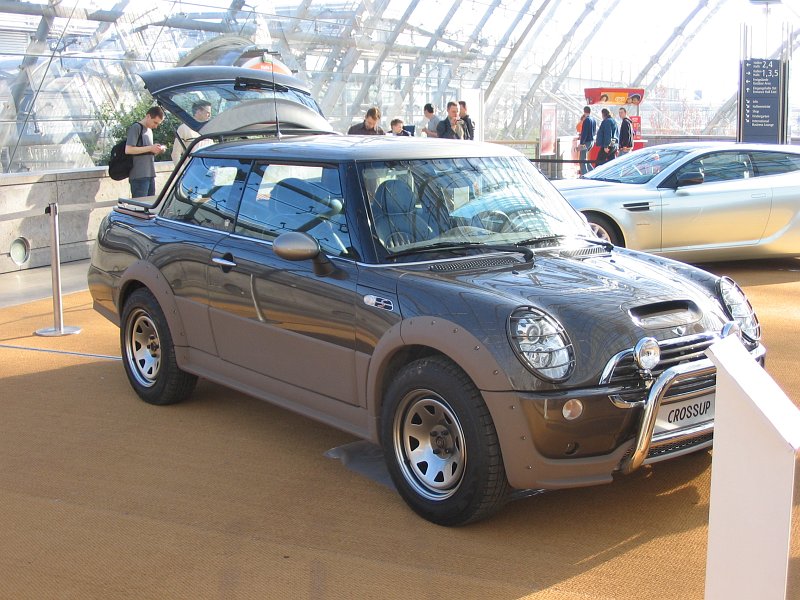

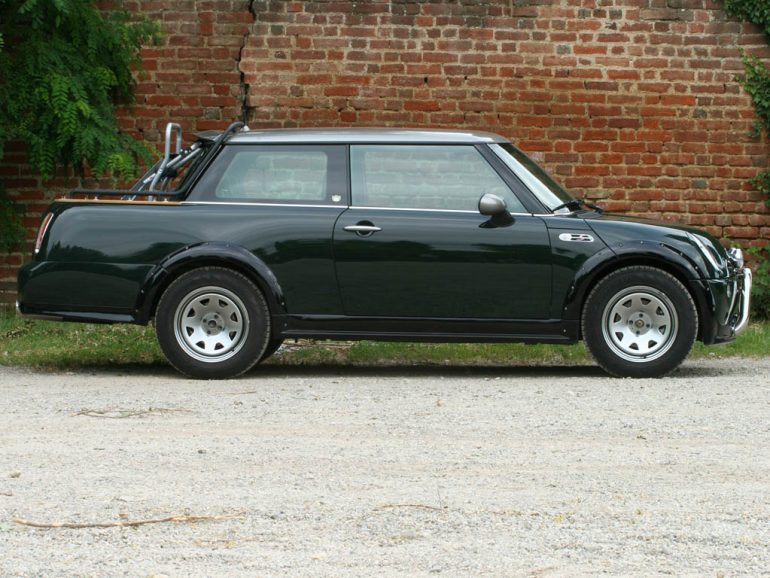

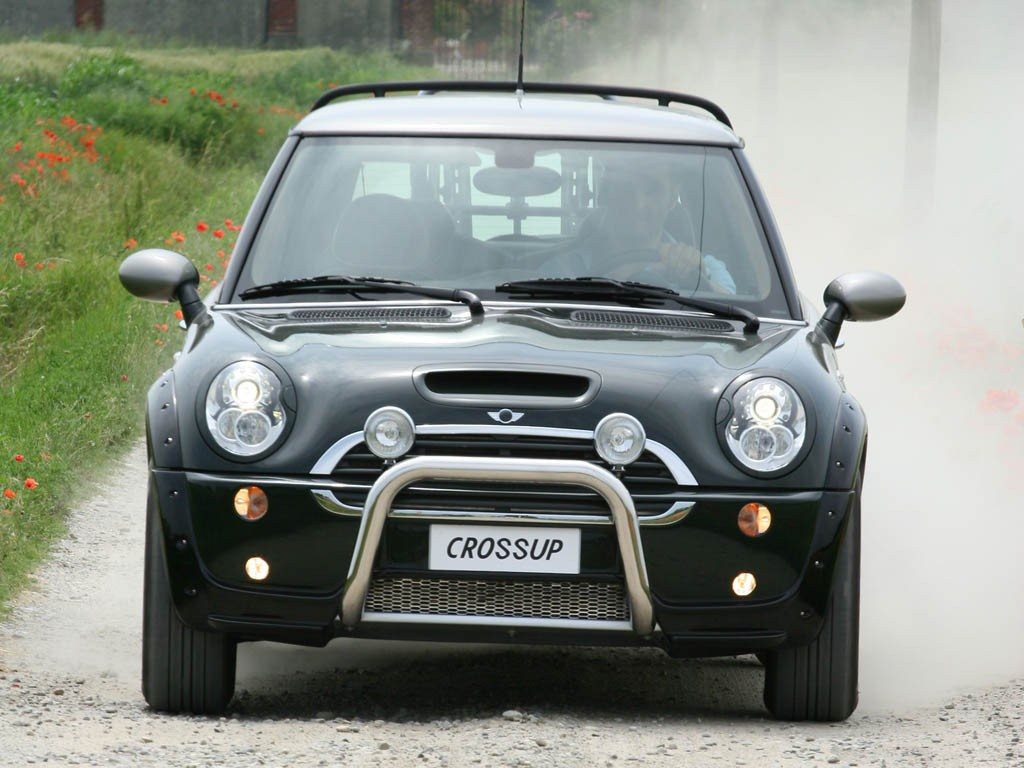

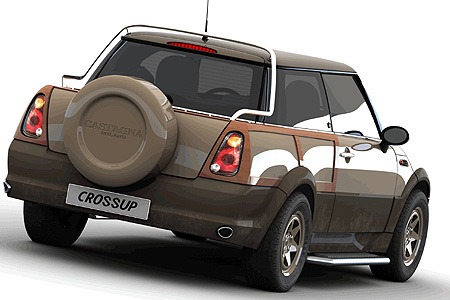

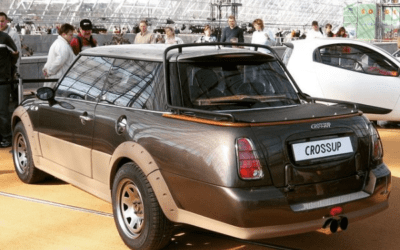

The Mini CrossUP is a bespoke concept vehicle developed by the Italian coachbuilder Carrozzeria Castagna Milano, unveiled in 2005. Based on the first-generation BMW Mini (R50/R53), the CrossUP was conceived as a versatile, off-road-inspired pickup, blending urban agility with rugged styling cues. The CrossUP features an extended rear section, transforming the traditional Mini hatchback into a compact pickup. This extension includes a cargo bed clad in scratch-resistant materials, equipped with lockable compartments designed to accommodate various accessories, enhancing the vehicle’s utility for diverse applications . A notable feature is its variable suspension system, allowing the ground clearance to be adjusted up to 25 cm. This adaptability enables the CrossUP to navigate different terrains, from urban streets to off-road paths, with equal proficiency . True to Castagna’s tradition of bespoke craftsmanship, the CrossUP’s interior is tailored to client specifications. One distinctive option includes a centrally mounted ‘Vodka-Cigar’ mini-fridge, capable of chilling beverages or maintaining optimal humidity for cigars, exemplifying the fusion of luxury and functionality. The Mini CrossUP was showcased at the 2006 Geneva Motor Show, alongside other Castagna creations like the Mini Tender and the Imperial Landaulet Concept. While it remained a concept, the CrossUP exemplifies Castagna’s innovative approach to reimagining existing platforms, merging classic design elements with contemporary needs .
02 / TECHNICAL IDENTITY
Specifications & construction
Production & construction
- Production type
- Limited
Engine & performance
- Engine configuration
- Inline-4
- Displacement
- 1,598 cc
- Power (CV)
- 170 CV
- Power (kW)
- 125 kW
- Engine speed
- 6,000 rpm
- Torque
- 220 Nm
- Transmission
- 6-speed manual
- Drive
- Front-wheel drive
- Top speed
- 210 km/h
- Specification notes
- Confidence detail moved from confidence: high_disposition_only. 2005 Castagna CrossUP body-specific baseline: inline-four 1598 cc, 125 kW / 170 PS at 6000 rpm, 220 Nm, 6-speed manual, FWD, wheelbase 2467 mm, dimensions 4420 × 1730 × 1566 mm, curb weight 1820 kg, top speed 210 km/h.
Dimensions & accommodation
- Wheelbase
- 2,467 mm
- Length
- 4,420 mm
- Width
- 1,730 mm
- Height
- 1,566 mm
- Weight
- 1,820 kg
Design & manufacture
- Coachbuilder / Body Builder · Documented
- Castagna
- Designer · Candidate
- Gioacchino Acampora
- Manufacturer · Documented
- Mini
06 / EVENTS & AWARDS
Events & awards
No events or documented awards are currently recorded for this vehicle.
07 / THE VEHICLE IN DETAIL
Photo gallery 9 photographs
Show 3 more photographs Show fewer photographs
08 / FROM THE ARCHIVE
Archive
References held in the vehicle dossier. Their inclusion does not establish that every historical claim has been independently verified.
| Reference | Source type |
|---|---|
| Castagna CrossUP 2005 — technical specification auta5p.eu | Specialist show vehicle technical reference |
| Castagna Mini CrossUP — coachbuilder story www.supercars.net | Coachbuilder story reference |
