THE VEHICLE AT A GLANCE
Model dossier
- Production period
- 1959
- Body style
- Spider
- Type
- Limited
- Displacement
- 1,587 cc
- Power
- 95 CV
- Top speed
- 180 km/h
- Seats
- 2
THE PEOPLE BEHIND THE CAR
Coachbuilding, design & conversions
PRICE & SALES RECORD
Vehicle value
- Original price
- Not documented
- Latest recorded sale
- Not documented
01 / THE STORY
History & context

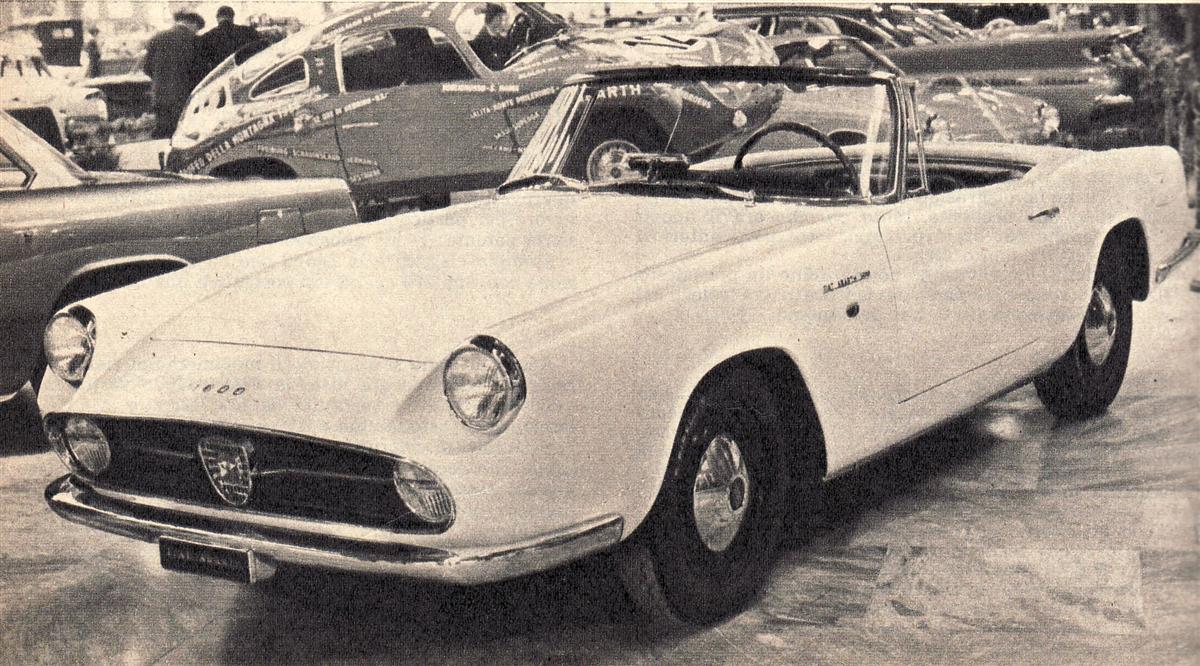

The Abarth 1600 Spider Allemano is a rare jewel of 1960s automotive artistry, a fusion of high-performance engineering and handcrafted elegance. Designed by the legendary Giovanni Michelotti and unveiled at the 1959 Turin Motor Show, this striking machine embodied the golden age of Italian coachbuilding, where passion and precision went hand in hand. Built on the foundations of the Fiat 1500 Spider, the Abarth 1600 Spider Allemano elevated itself beyond the ordinary with an OSCA-derived 1500cc four-cylinder engine, expertly bored out to 1600cc. This mechanical heart was a masterpiece in itself, a high-revving, race-bred powerplant that delivered both performance and charisma. Abarth’s signature tuning ensured that every press of the throttle was met with an eager response, making this car not just a stylish cruiser but a true driver’s machine. The bodywork, designed and handbuilt by Allemano, was offered in both coupé and spider configurations. Its design was quintessentially Italian—elegant yet purposeful, with flowing lines that hinted at the car’s agility and speed. Unlike mass-produced sports cars of the era, the Abarth 1600 Spider Allemano was a limited-run, coachbuilt special, catering to discerning enthusiasts who sought exclusivity alongside performance. Every detail of the Abarth 1600 Spider Allemano spoke of a time when cars were sculpted rather than manufactured, when artisans shaped aluminum by hand and every stitch in the interior was placed with care. It was more than just a car—it was a statement, a celebration of 1960s Italian automotive craftsmanship, and a reminder of Abarth’s relentless pursuit of performance wrapped in beauty.
02 / TECHNICAL IDENTITY
Specifications & construction
Production & construction
- Production type
- Limited
Engine & performance
- Displacement
- 1,587 cc
- Power (hp)
- 94 hp
- Power (CV)
- 95 CV
- Power (kW)
- 70 kW
- Torque
- 137 Nm
- Transmission
- 4-speed manual
- Drive
- Rear-wheel drive
- Top speed
- 180 km/h
- Specification notes
- 1959 identity and Turin presentation are supported by Classic Driver; detailed specifications are taken from Automobile-Catalog’s 1960–62 Abarth Spider 1600 Allemano specification. Because the technical source describes the production specification rather than a chassis-specific survivor, values are treated as model-level technical data. The often-repeated production count of three remains unconfirmed and is not canonicalized.
Dimensions & accommodation
- Wheelbase
- 2,340 mm
- Length
- 4,230 mm
- Width
- 1,540 mm
- Height
- 1,250 mm
- Weight
- 1,000 kg
- Doors
- 2
- Seats
- 2
Design & manufacture
- Designer · Documented
- Giovanni Michelotti
- Coachbuilder / Body Builder · Documented
- Allemano
- Manufacturer · Documented
- Abarth
06 / EVENTS & AWARDS
Events & awards
No events or documented awards are currently recorded for this vehicle.
07 / THE VEHICLE IN DETAIL

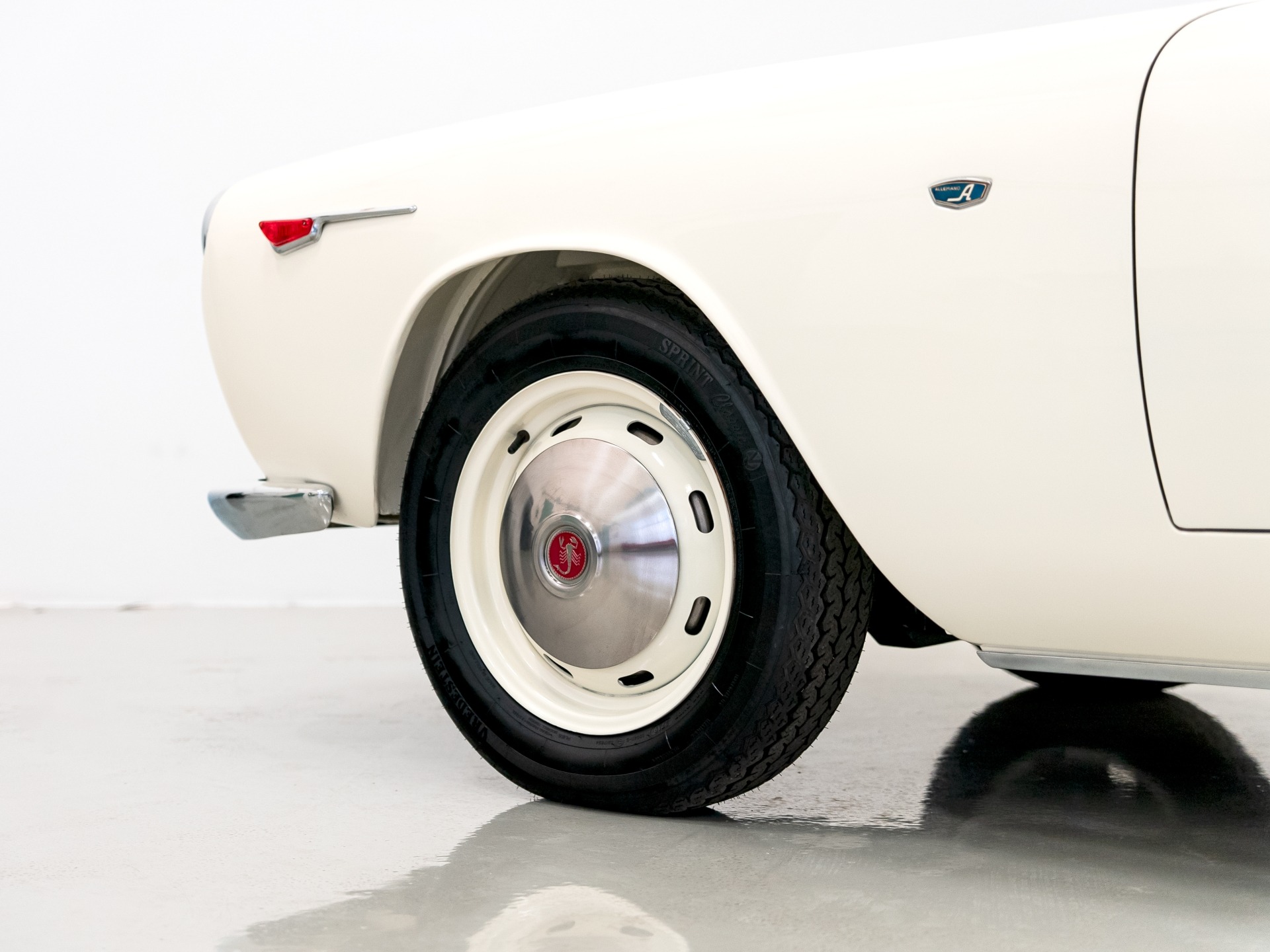

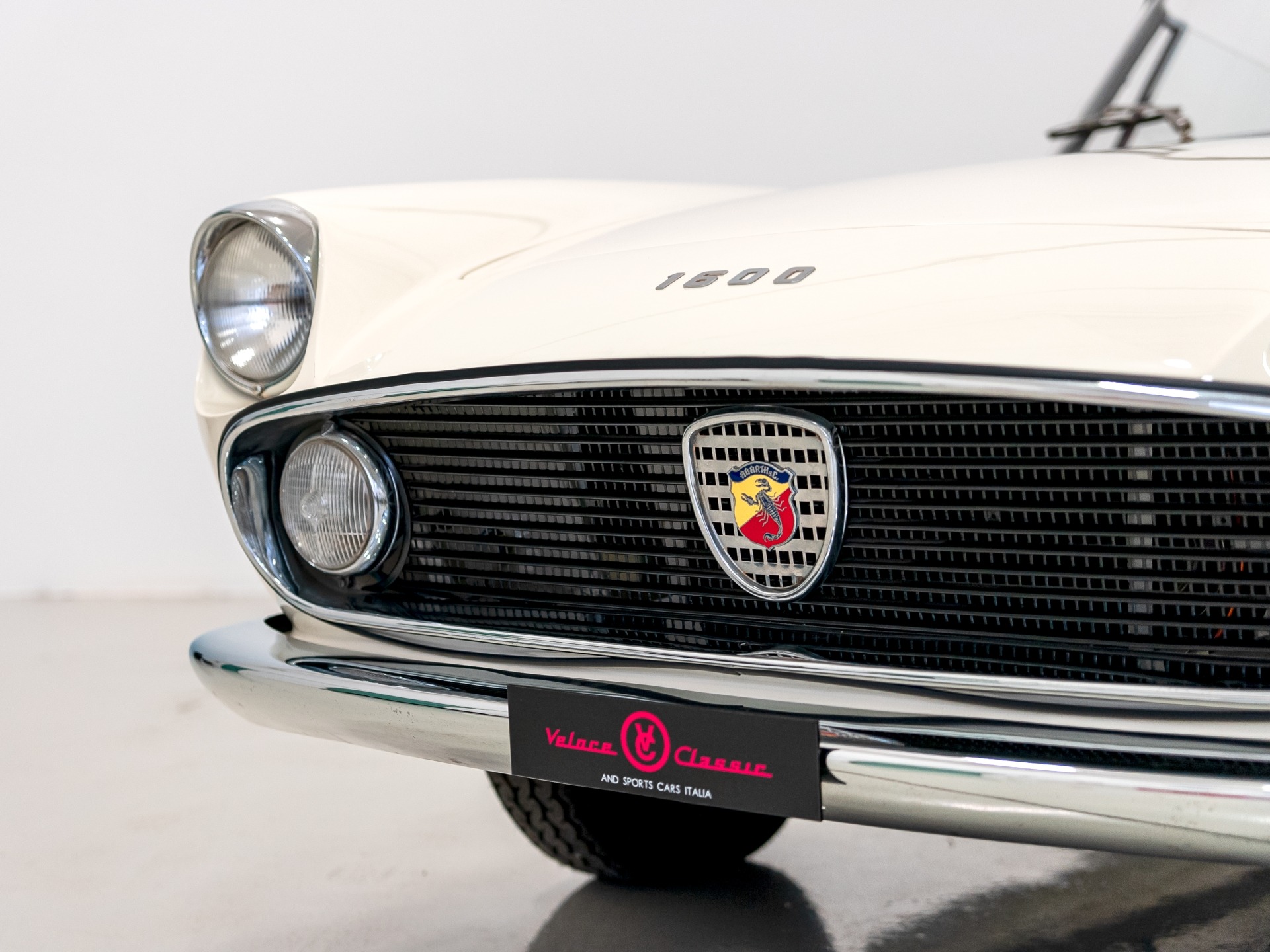

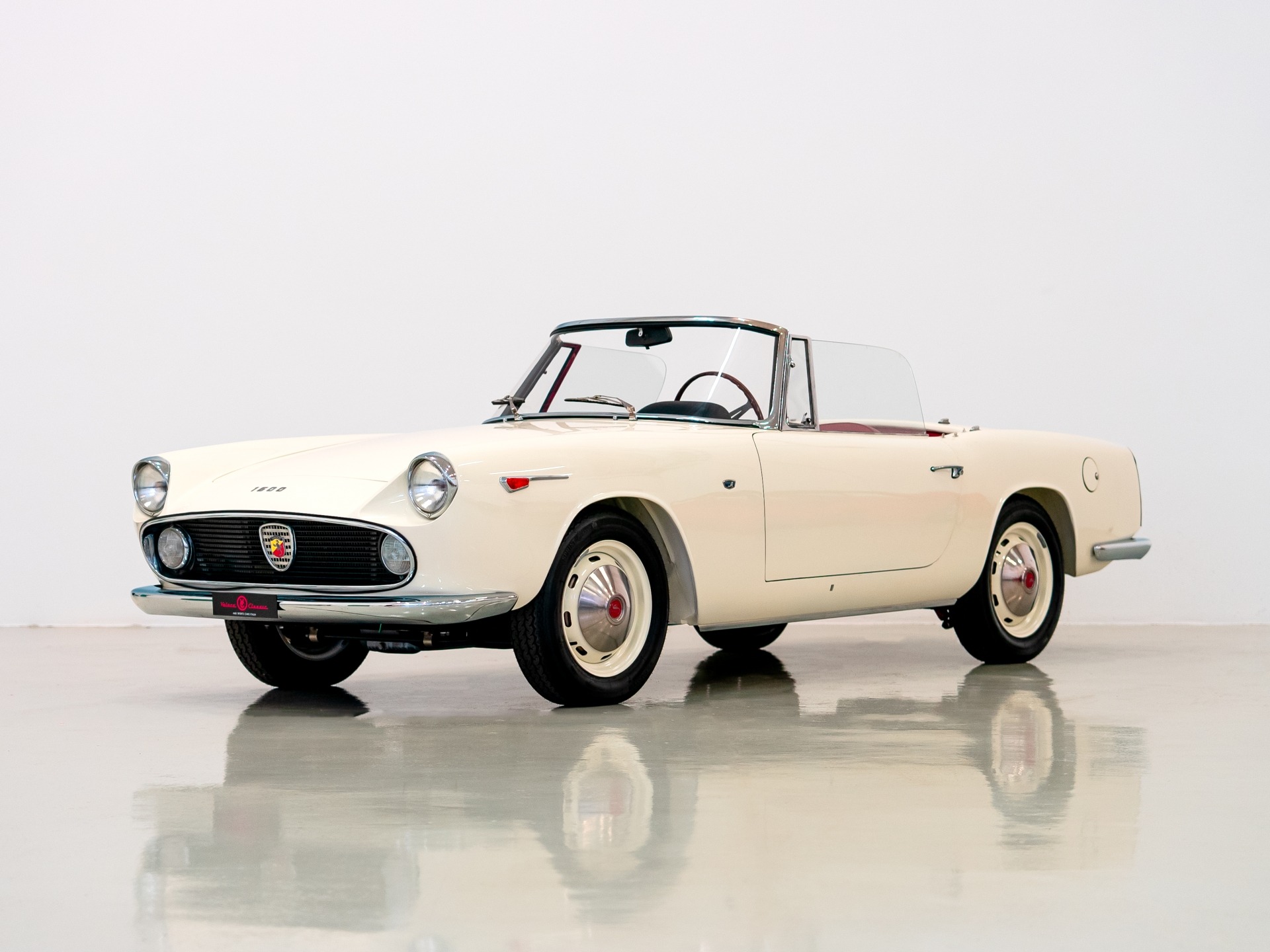

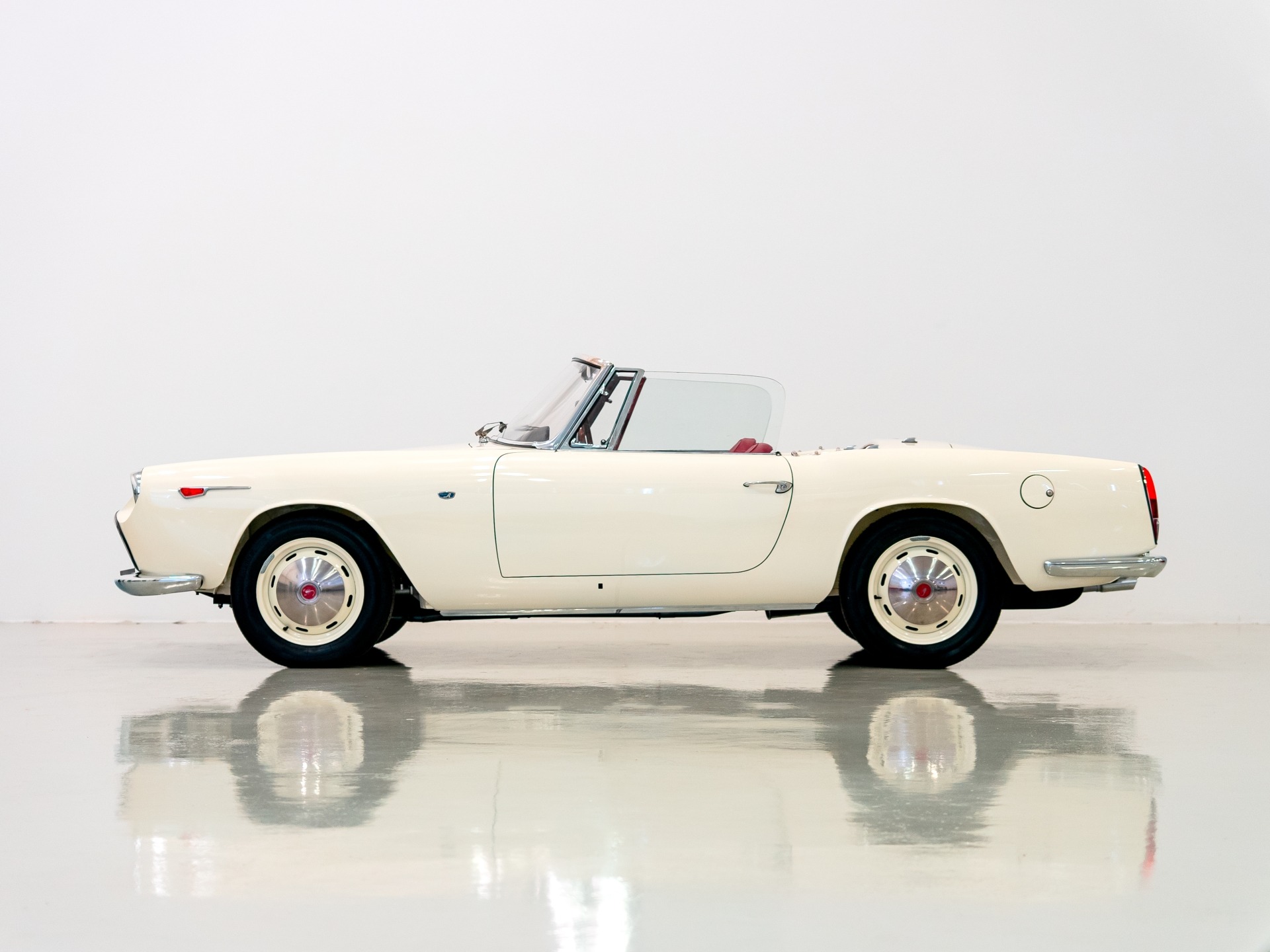

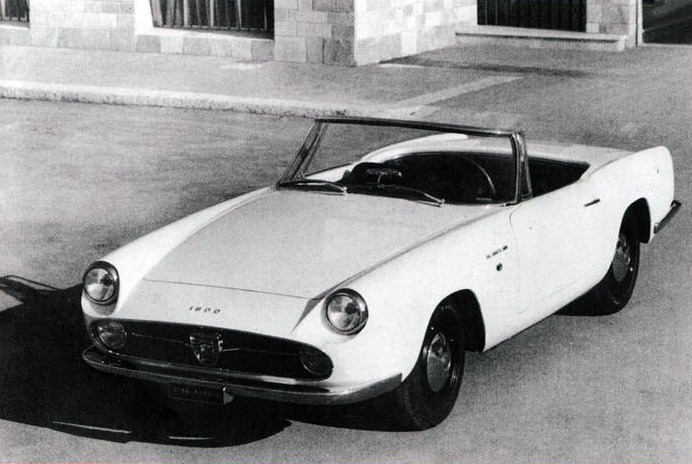

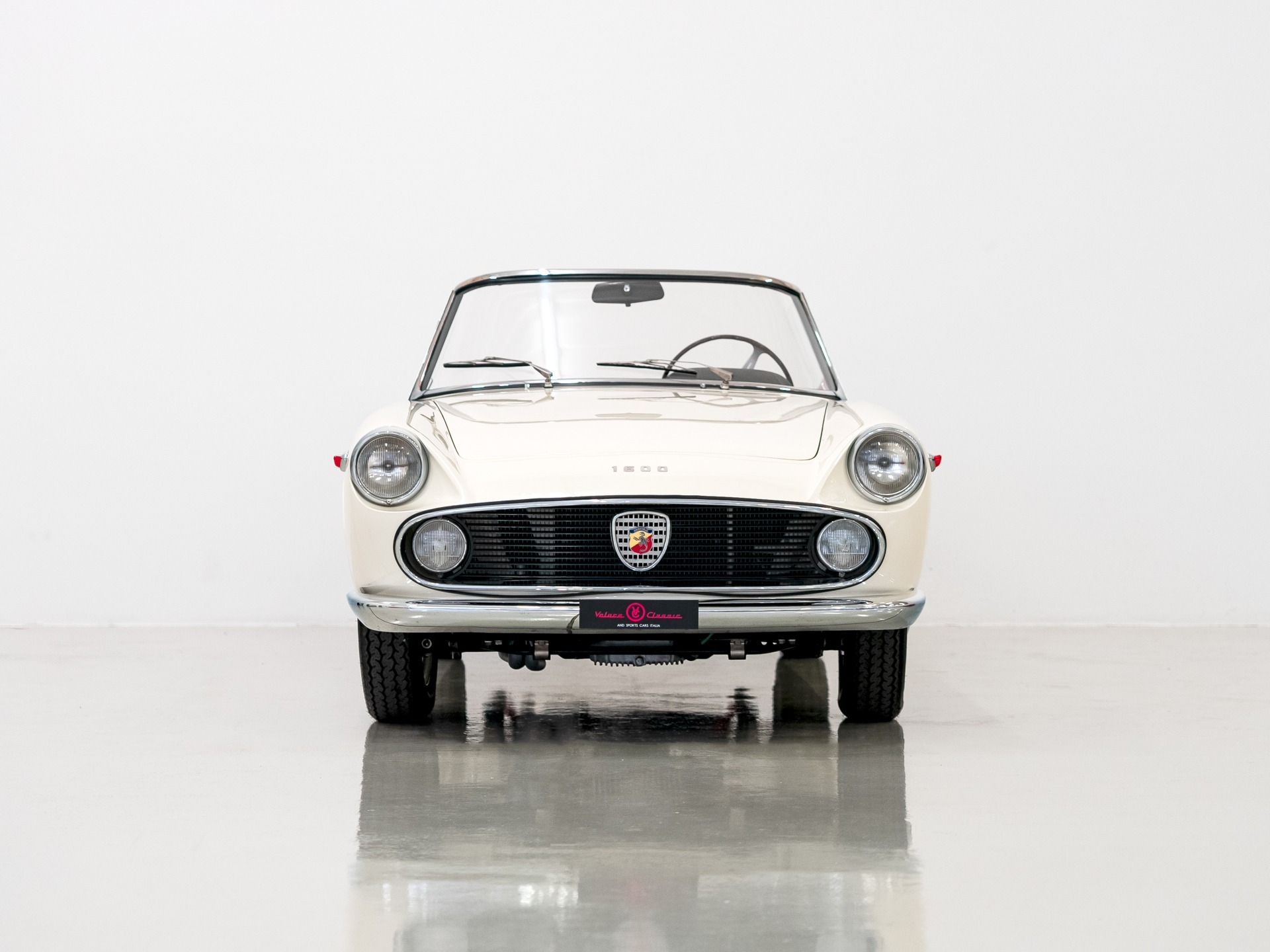

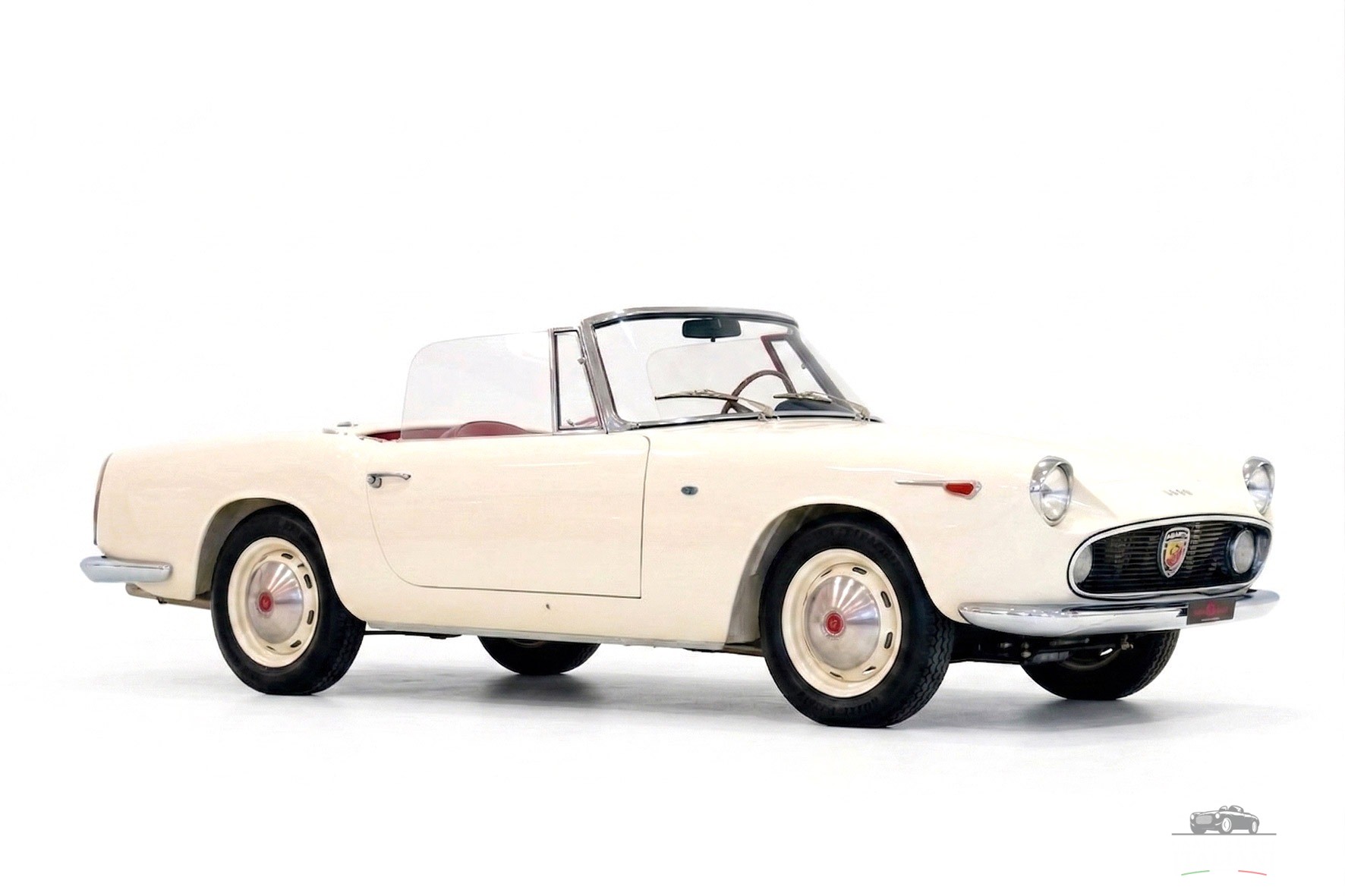

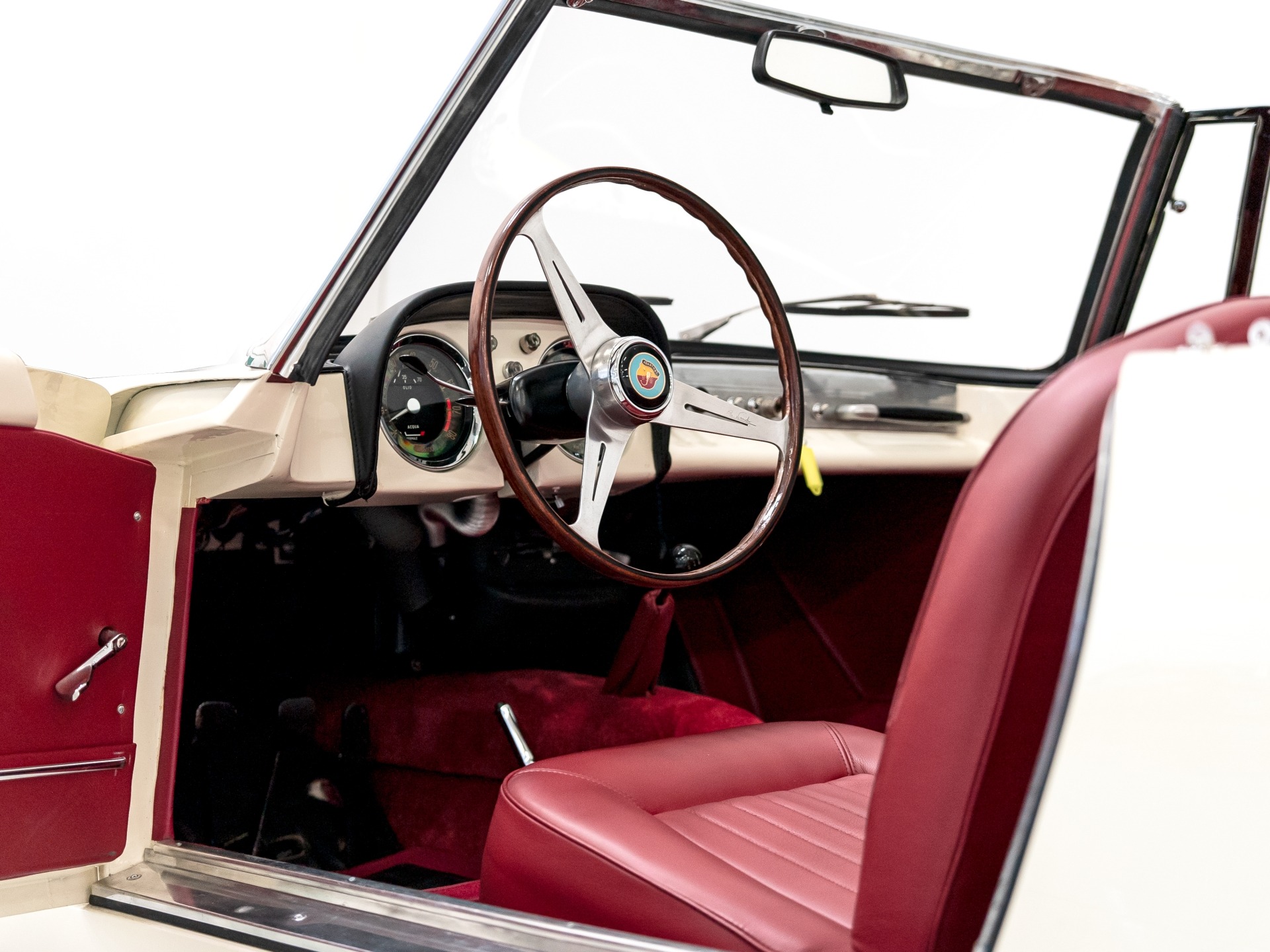

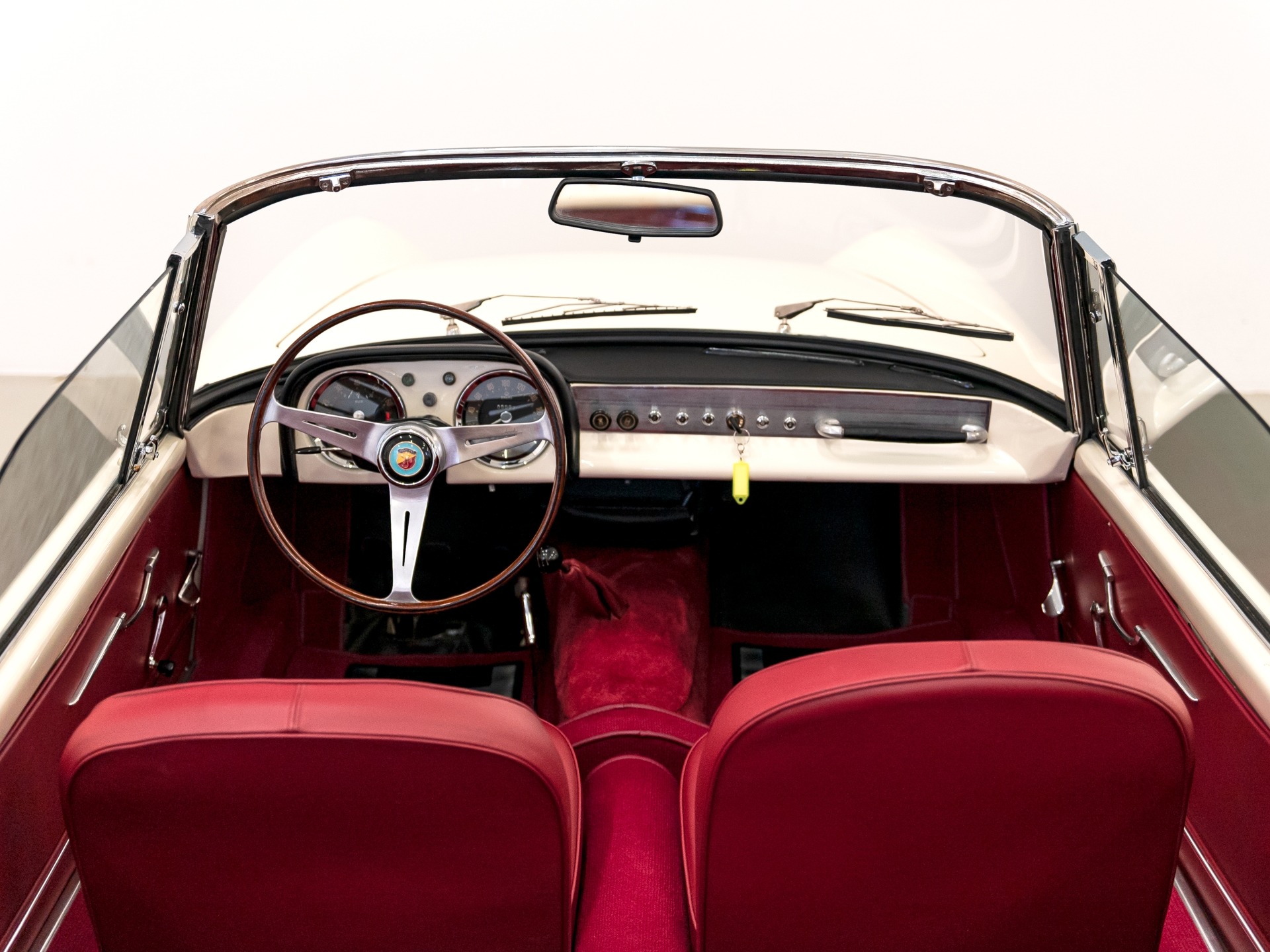

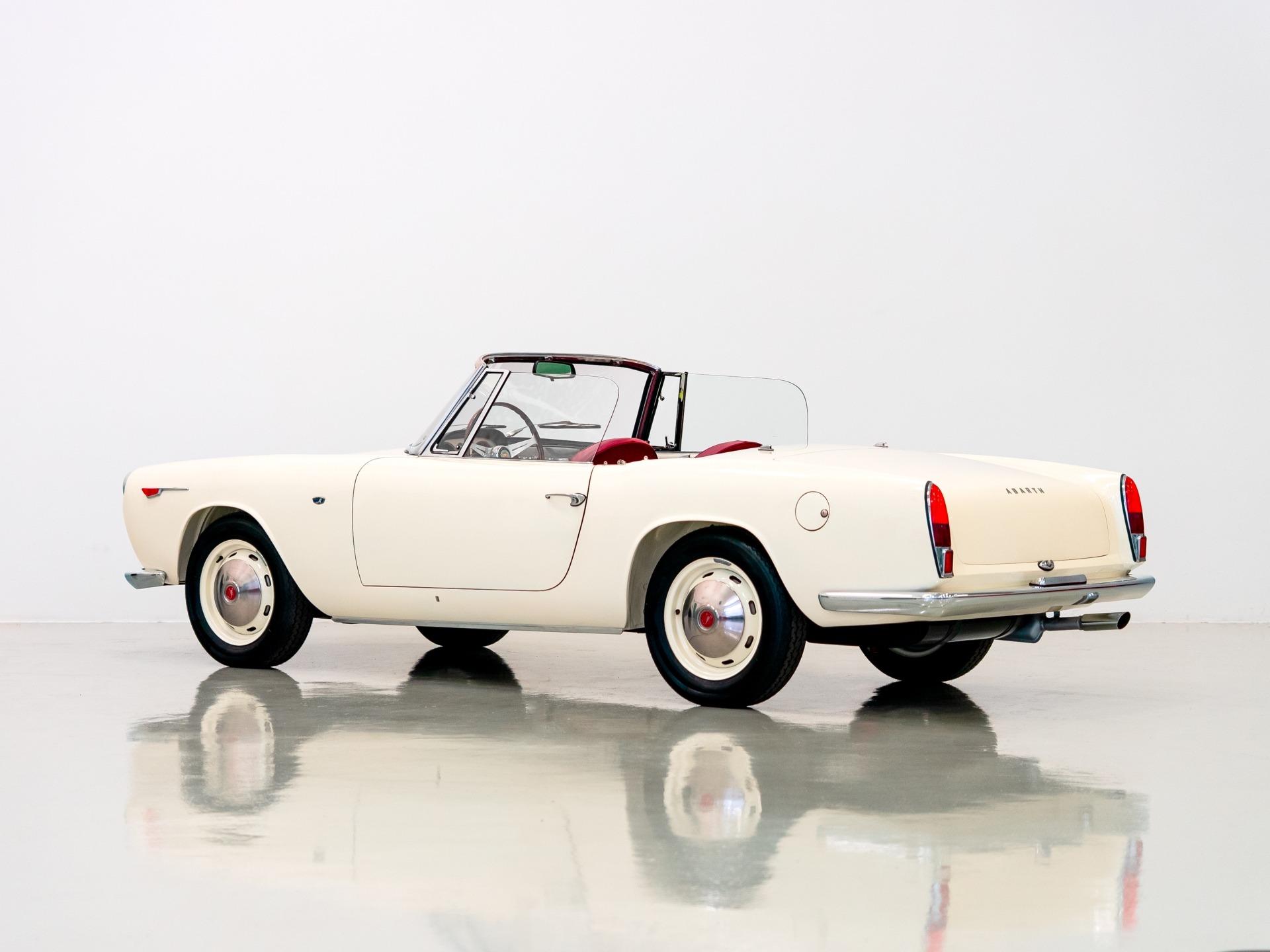

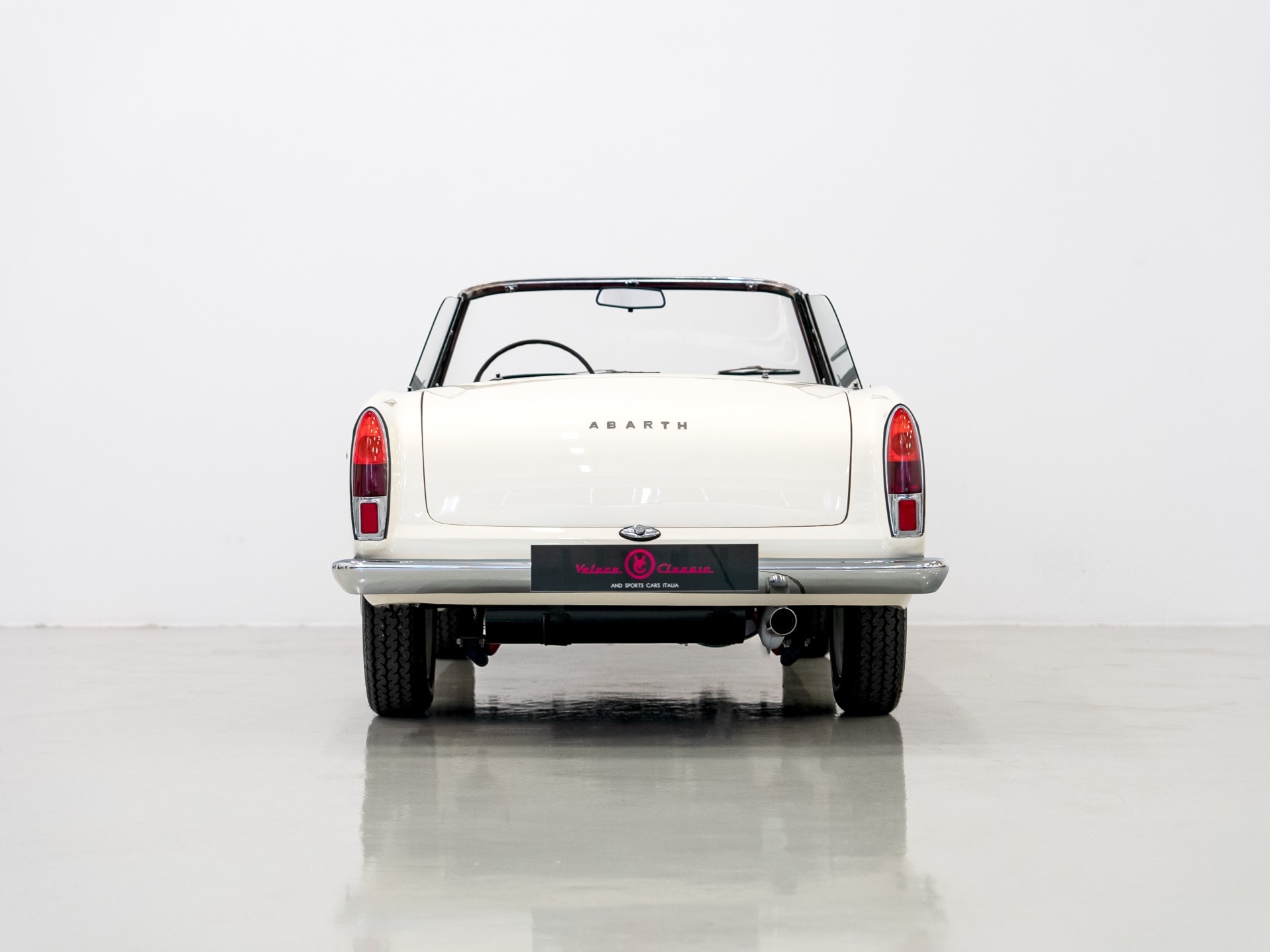

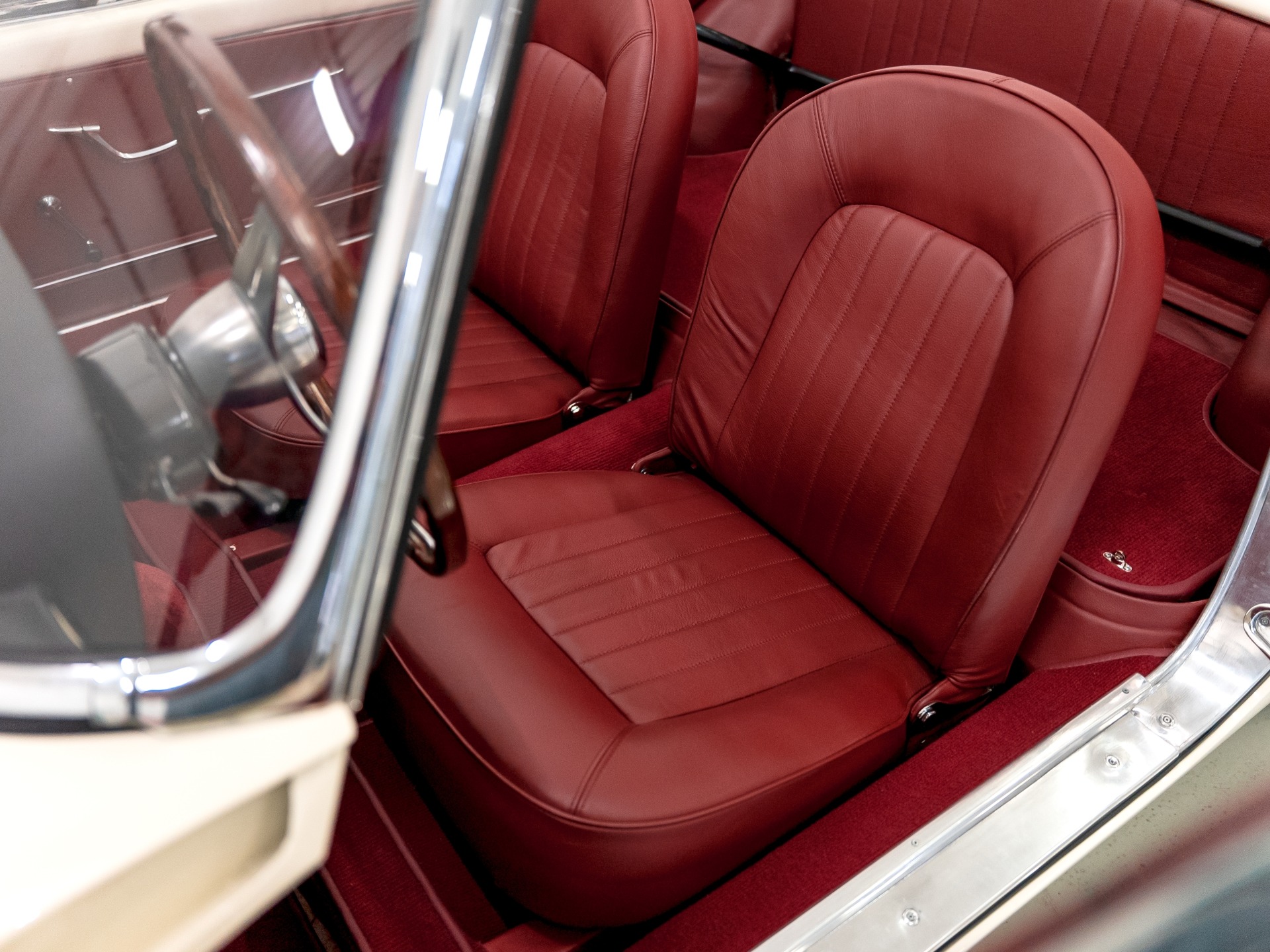

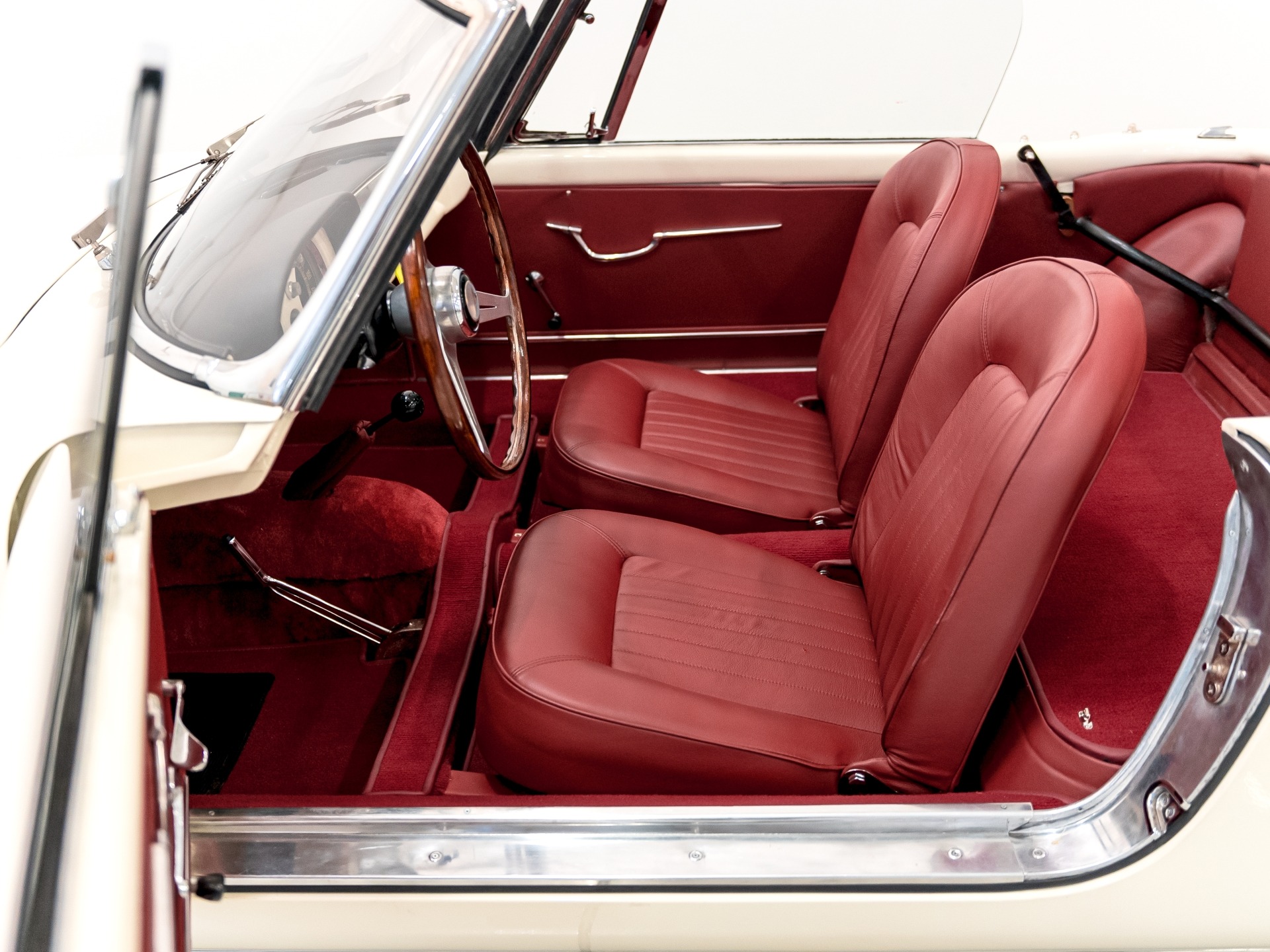

Photo gallery 17 photographs
Show 11 more photographs Show fewer photographs
08 / FROM THE ARCHIVE
Archive
References held in the vehicle dossier. Their inclusion does not establish that every historical claim has been independently verified.
| Reference | Source type |
|---|---|
| Classic Driver — 1959 Abarth 1600 Spider Allemano www.classicdriver.com | Market listing with vehicle history |
| Automobile-Catalog — Abarth Spider 1600 Allemano www.automobile-catalog.com | Secondary technical database |
