THE VEHICLE AT A GLANCE
Model dossier
- Production period
- 2008
- Body style
- MPV
- Engine
- V6 hybrid + 2 electric motors
- Type
- Concept
- Displacement
- 3,311 cc
- Top speed
- 250 km/h
THE PEOPLE BEHIND THE CAR
Coachbuilding, design & conversions
PRICE & SALES RECORD
Vehicle value
- Original price
- Not documented
- Latest recorded sale
- Not documented
01 / THE STORY
History & context

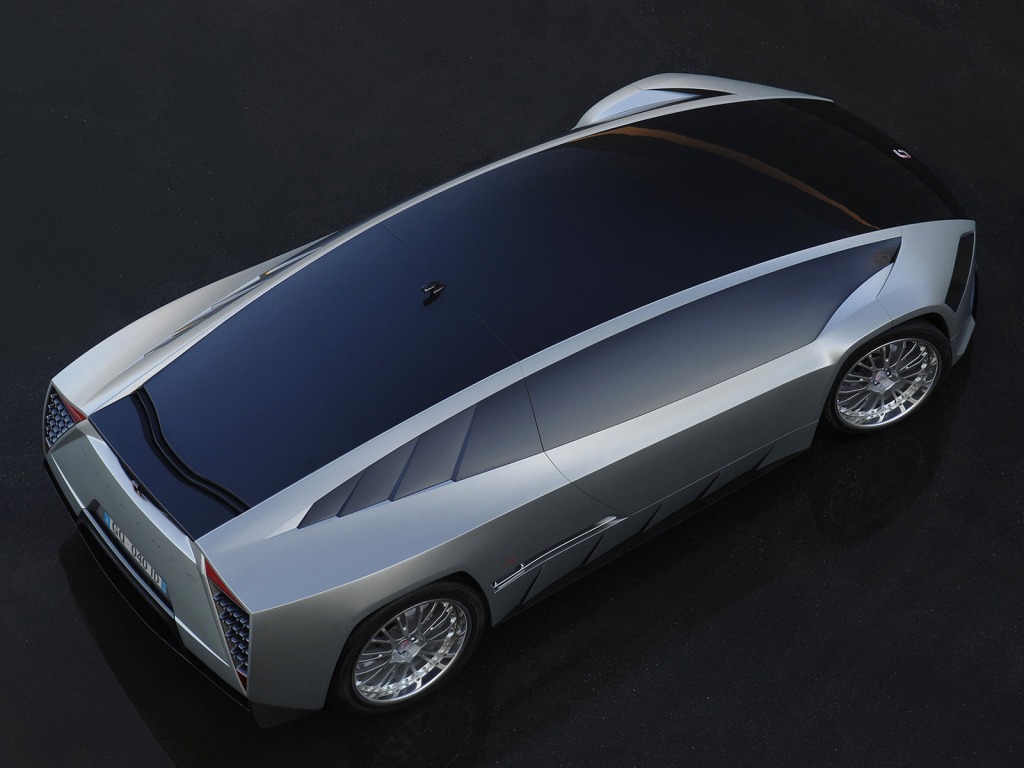

The Giugiaro Quaranta, despite its flat, highly compact shape, features a single-volume shape, characterized by a continuous body line stretching from its clipped nose to the tail that exploits the almost horizontal rake of the windscreen, as a hommage to the 1968 Bizzarrini Manta which, at that time, represented a major breakthrough in styling. Access to the cabin of the Giugiaro Quaranta is “step-in” via an upper door incorporating the side ones. At the touch of an electric on/off button, the door opens upward in a downwind direction, regulated by proximity sensors. The door is hinged to the hood pillar and is aligned with a second upper rear door, for access to the engine compartment and boot. The roof houses the array of solar panels, necessary to power the electric battery, in the space between the two doors. Along with the other solar panels positioned on the front end, these create a central opaque strip, a distinctive signature of the model, thanks to the interplay of light with the bright paint of the bodywork. The solar panels can generate a power of up to 250 W, sufficient for the functioning of the cockpit conditioning system and for recharging the electric battery.
02 / TECHNICAL IDENTITY
Specifications & construction
Production & construction
- Production type
- Concept
Engine & performance
- Engine configuration
- V6 hybrid + 2 electric motors
- Displacement
- 3,311 cc
- Transmission
- 6-speed automatic
- Drive
- All-wheel drive
- Top speed
- 250 km/h
- Specification notes
- 2008 Italdesign Quaranta concept baseline: V6 hybrid with two electric motors, 3311 cc combustion engine, 6-speed automatic, AWD, wheelbase 2620 mm, dimensions 4450 × 1982 × 1230 mm, weight 1400 kg, top speed 250 km/h. Retrospective technical sheets disagree on combined output (268/272 PS), so power/torque remain blank.
Dimensions & accommodation
- Wheelbase
- 2,620 mm
- Length
- 4,450 mm
- Width
- 1,982 mm
- Height
- 1,230 mm
- Weight
- 1,400 kg
Design & manufacture
- Designer · Candidate
- Fabrizio Giugiaro
- Design Studio · Documented
- Italdesign
06 / EVENTS & AWARDS
Events & awards
Geneva General · legacy_preserved
- Date
- 2008
- Chassis
- General
Preserved CI 1.0 relation. Evidence field: _al_listing_engine_location. No award inferred.
07 / THE VEHICLE IN DETAIL
Photo gallery 5 photographs
08 / FROM THE ARCHIVE
Archive
References held in the vehicle dossier. Their inclusion does not establish that every historical claim has been independently verified.
| Reference | Source type |
|---|---|
| Italdesign — Quaranta www.italdesign.it | Design house official |
| Giugiaro Quaranta technical specification www.autogen.pl | Specialist concept technical reference |
